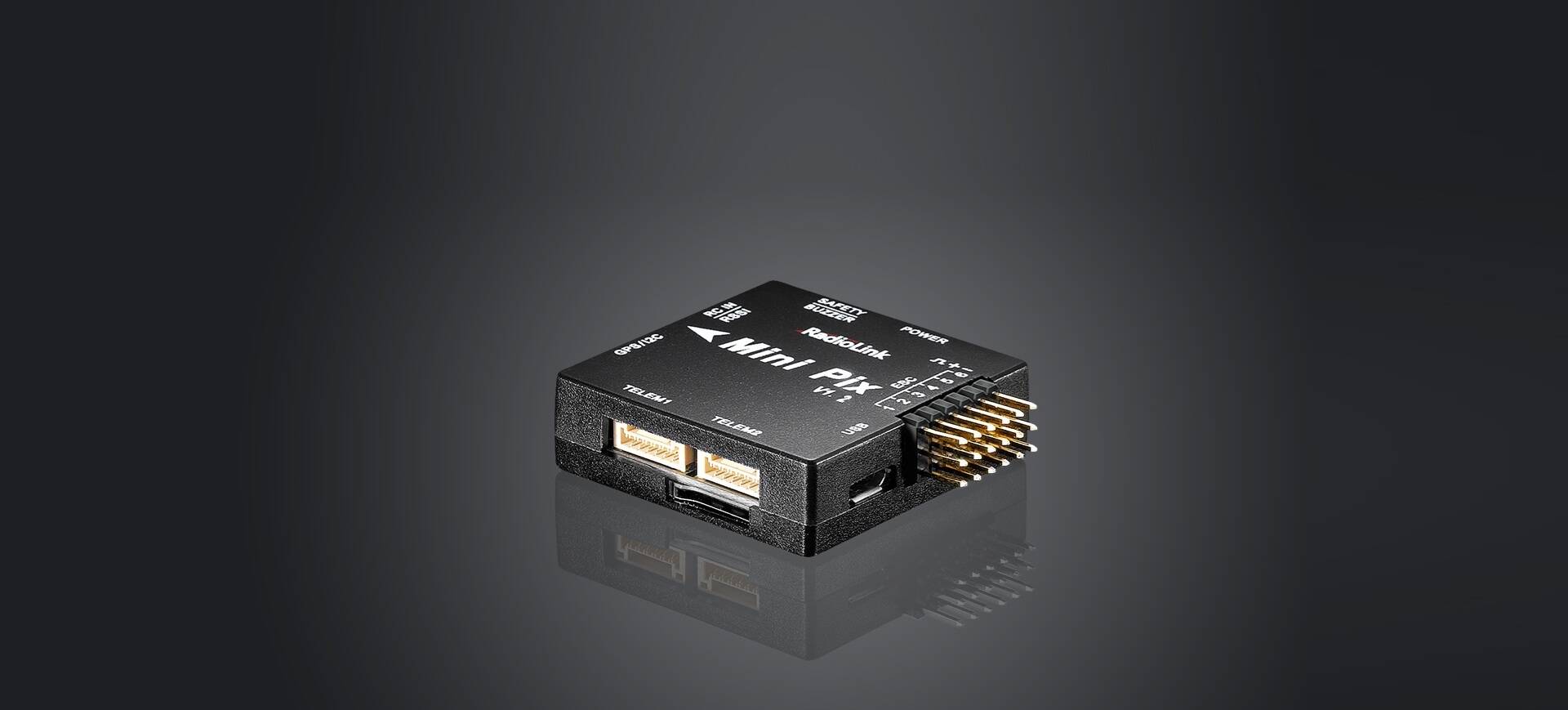

RadioLink Mini Pix

Vibration Damping by Software

Better Altitude Hold

Vibration Damping by Software

Based on the mature research and development of PIXHAWK, we took about one year to reanalyze and retest all the functions of all the models including fixed wing, multicopter and helicopter, made vibration damping by software to achieve better Altitude Hold effect come true. All the planes including helicopters, fixed wings and drones no need to add mounting frame.

Top Configuration

RadioLink Mini Pix, with STM32F405VGT6 processor and LPS22HB barometer from America ST, MPU6500 accelerometer from INVENSENS, QMC5883L compass with same technology as HMC5983 from Honeywell, is your best choice that with top configuration and affordable price.

Better Altitude Hold

It has a shell that is completely closed to protect against the interaction effects of the air current wake on air pressure during flight. The main board has an air pressure vent to ensure the accuracy of the barometer testing. Shell design and vibration damping, achieved through software, enable the RadioLink Mini Pix to achieve a better Altitude Hold effect.

Quality Assurance

Radiolink took about six months to develop the Automation Software Testing System, ensure the quality of every function of every Mini Pix.

As the only PIX manufacturer that realizes test automation from the sensor to the interface, testing efficiency of Radiolink is far more than traditional manual testing.

Mini Size as F4

The size is 39*39*12mm (1.54"*1.54"*0.47", same size as F4), even though the mini racing drone can put it in. The weight includes all the wires, just 39 grams, which lengthens the flight time.

Worry-free Practice

Practice from PosHold Mode, Stabilize Mode to Acro Mode, easy to achieve from beginner to professional.

Cost-effective Solution

Flight controller Mini Pix, Radiolink MINI GPS TS100, and 8 channels remote control system T8FB, almost all the parts of RC drone you need we can offer. Best choice for DIY RC fans.

Work with SUI04,

Overall Synchronous Obstacle Avoidance

The Transfer Board* packed extends the I2C port quantity of Mini Pix as TWO. The two I2C ports can be used to connect corresponding I2C modules such as one ultrasonic sensor SU04* to achieve altitude holding and an LED module.

Or with the optional expansion board, a maximum of 6 ultrasonic sensors SUI04 can be connected to make aircraft avoid obstacles from 5 directions (forward/backward/left/right/upward) and altitude hold downward.

Obstacle Avoidance

(forward)

I2C Expansion Board connects to SUI04 as an example

Obstacle Avoidance

(backward)

Obstacle Avoidance

(downward)

Obstacle Avoidance

(left)

Obstacle Avoidance

(right)

Obstacle Avoidance

(upward)

* I2C Transfer Board: Standard accessory packed with Mini Pix/TURBO PiX.

* I2C Expansion Board: The I2C port of the flight controller can be extended to a maximum of six.

Power Module* with Wide Voltage Input

The power module that comes with the flight controller with a wide voltage input range of 2-12S (7.4-50.4V), a maximum detection current of 90A (single ESC maximum detection current is 22.5A), a BEC output voltage of 5.3±0.2V, and a BEC output current of 2A.

*Note: The default factory packing only includes one piece of power module (choose one from the two power modules above). When purchasing, please choose the correct power module package version according to the installation requirements.

Use Guarantee

Installation and parameter setting are really not difficult

With the accumulation of research and development in the past ten years, we have reanalyzed and retested all the functions of all the models, including airplanes, multicopters, helicopters, cars, and boats. All the usage guidance needed for all functions, from basic use, PID parameter adjustment, log viewing, etc., for each model we can offer.

FAQ on the official website, Facebook, YouTube, Instagram, and the professional section of the forum, Radiolink is eager to help users use Radiolink products on multiple platforms.

Mini Pix Ports

SAFETY/BUZZER: B+ B- 3.3V LED SAFETY

POWER: GND GND VOLTAGE(up to 3.3V) CURRENT(up to 3.3V) VCC(5V) VCC(5V)

RC IN/RSSI: VCC(5V) RC RSSI GND

GPS/I2C: VCC(5V) TX(OUT 3.3V) RX(IN 3.3V) SCL(3.3V pullups) SDA(3.3 pullups) GND

TELEM1: VCC(5V) TX(OUT 3.3V) RX(IN 3.3V) CTS(3.3V) RTS(3.3V) GND

TELEM2: VCC(5V) TX(OUT 3.3V) RX(IN 3.3V) CTS(3.3V) RTS(3.3V) GND

USB

* The Mini Pix can set parameters by Radiolink Mission Planner, ArduPilot Mission Planner, and QGC Mission Planner.

* The Mini Pix can upgrade the firmware from Radiolink and open-source.

* The latest firmware of Mini Pix will not be notified separately. Please pay attention to the firmware download section of Radiolink's official website to view the latest firmware and firmware instructions. Please upgrade according to your needs.

* In the process of using the Mini Pix, if you encounter problems, you can view the instructions, tutorials, or FAQ on the navigation bar of this introduction.

* After consulting all the tutorials, you still have questions about the operation. You can consult our technical support by emailing after_service@radiolink.com.cn

Package List for Mini Pix
